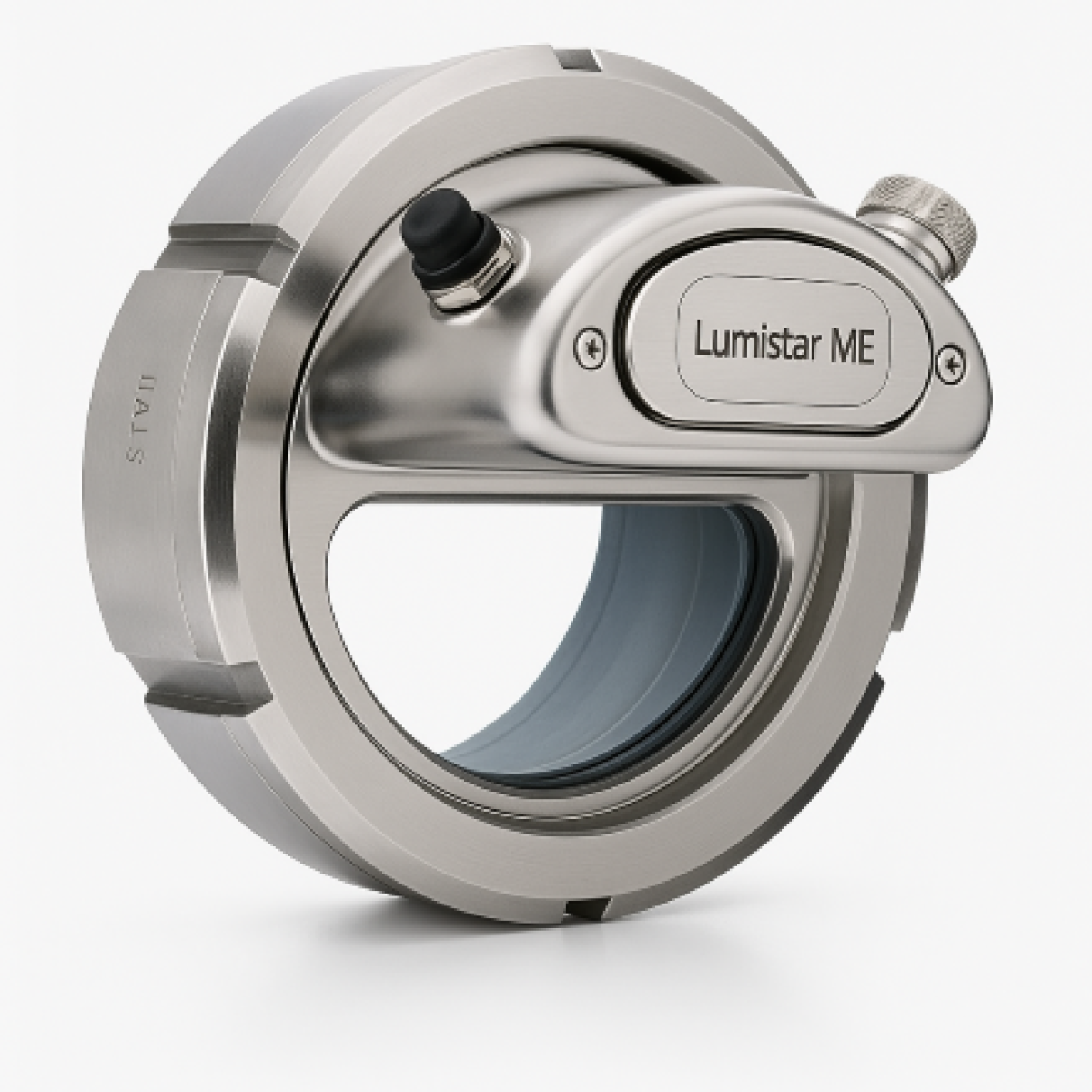

ME-LED
- Product Code: ME-LED
For the combination of sight and light glass ports, suitable for round
screwed sight glass fittings according to DIN 11851 or similar,
DN 65 to DN 125
- Operating voltage/power:
ME 65-LED and ME 80-LED: 12-24 V DC – 1.5 W
ME 100-LED and ME 125-LED: 24 V AC/DC – 2.0 W
Colour temperature: 5000 K
Luminous flux: 1.5 W = 104 lm; 2.0 W = 170 lm - Beam angle: 26° or 33°
- Built-in switch: The Lumistar luminaires ME-LED can be supplied
with or without built-in push button switch
