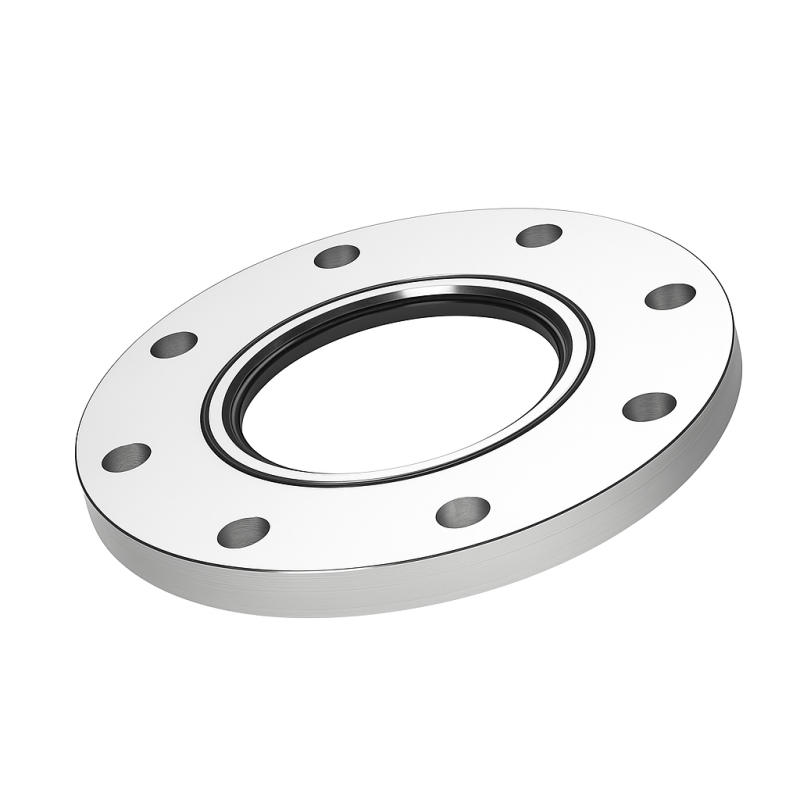

METAGLAS® Type 19.BIO — O-Ring Sealed Sight Glass Flange (DIN 28117 / Flat Face)
The METAGLAS® Type 19.BIO is a metal-fused sight glass flange engineered for installation on
base flanges per DIN 28117 (or similar) and weld-neck flanges with a flat sealing surface.
It leverages an O-ring sealing concept for clean, repeatable, and maintenance-light operation, while the
fused glass ring delivers the trademark METAGLAS® mechanical pre-stress for fail-safe integrity.
Design & Construction
Interfaces: Base flanges DIN 28117 (or similar) and flat-face weld-neck flanges
Sealing:O-ring seal (material per duty: EPDM, FKM/Viton®, PTFE, etc.)
Envelope: Pressure / temperature dependent on size and materials (data on request)
Applications
Process vessels and reactors with DIN 28117 base flanges
Flat-face weld-neck sight ports on chemical and pharma equipment
Utilities and CIP/SIP loops requiring cleanable, reliable visibility
Retrofits where O-ring sealing is preferred over flat gasket stacks
Key Advantages:
O-ring sealing for quick, repeatable assembly and clean service
Metal-fused glass = no gasket creep at the glass/metal interface
High resistance to pressure cycling, vibration, and thermal shock
Maximum viewing with minimum build height
Hygienic, maintenance-light installation — built for uptime
Specify DN size, flange standard, media, temperature/pressure envelope, body alloy, and O-ring material.
John Moncrieff Ltd will configure Type 19.BIO to your duty with the correct seal set and documentation (PED/QA).
