Steam Level Gauge - Bi-Colour

Product Code: Steam Level Gauge - Bi-Colour

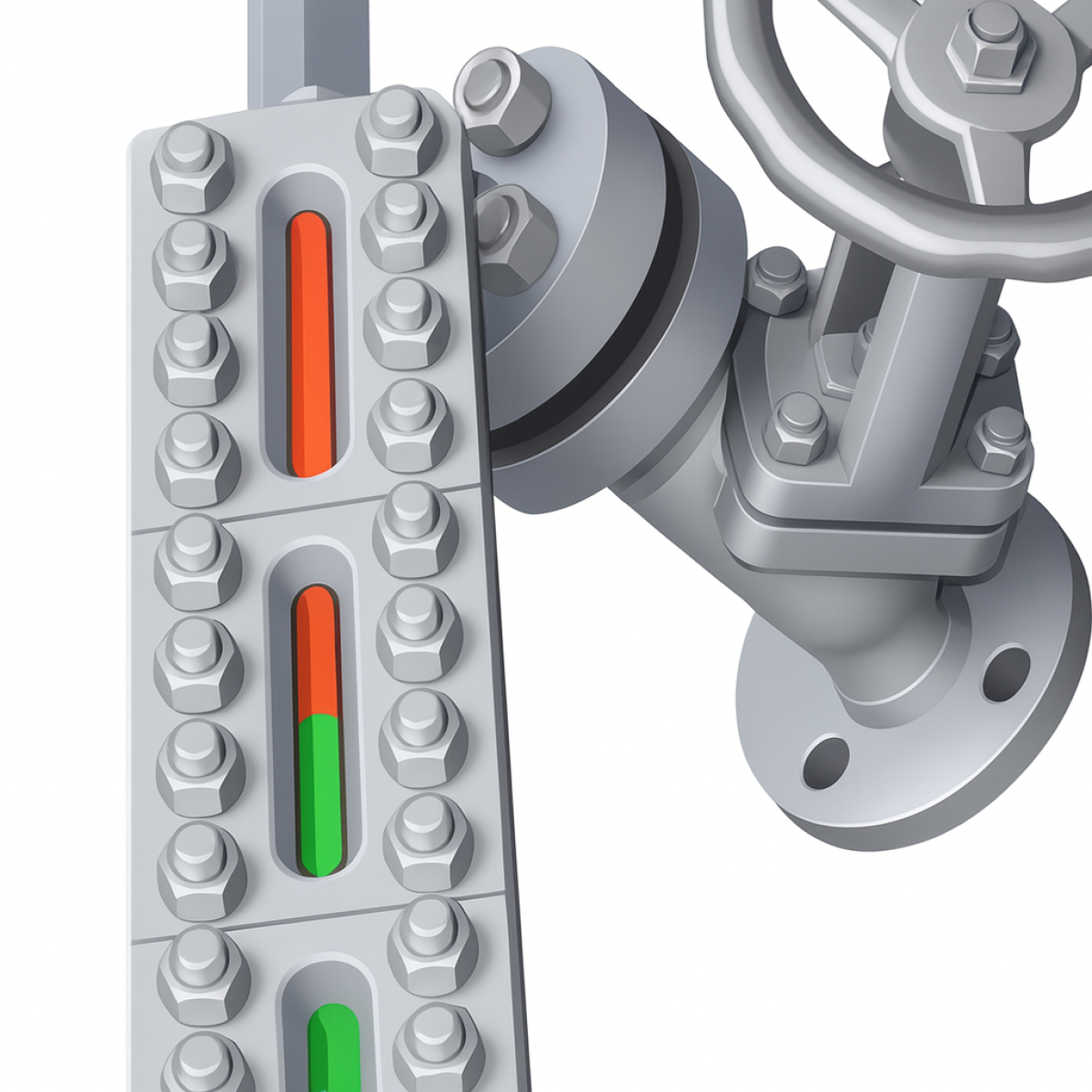

Bi-Colour Steam Level Gauge — Precision Visibility for High-Pressure Steam Systems

The Bi-Colour Steam Level Gauge is designed specifically for high-pressure boilers operating up to 210 bar saturated steam. Featuring distinct red and green phase indication, it provides clear, instant differentiation between steam and water levels, ensuring safe, accurate monitoring in demanding industrial and power-generation environments.

Engineered for reliability under severe operating conditions, this gauge combines robust forged alloy construction with advanced optical technology to deliver an unmistakable colour contrast reading — even in low-visibility or remote-monitoring setups.

Operating Principle

The bi-colour optical system directs light through the gauge body, producing a red indication for the steam space and a green indication for the water space. The sharp colour contrast eliminates ambiguity and enables quick, confident level assessment, even at long distances or in poor lighting conditions.

Product Details

Pressure Rating: Up to 210 bar saturated steam
Temperature Service: Suitable for high-pressure boiler applications
Indication: Clear red/green image showing water and steam interface
Alternative Display: Black-and-white option for remote camera or TV viewing
Construction: Forged alloy chamber (ASTM A182 F11)
Design Rating: ANSI 1500
Body Options: One-piece or two-piece configurations
Assemblies: Wide range of centre-to-centre dimensions and mounting assemblies available
Safety Compliance: Safety Assessment Federation approved

Application Note: The Bi-Colour Gauge is the preferred choice for high-pressure boiler installations where colour-contrast visibility is critical to safe operation. For lower-pressure or general steam service, consider our Reflex or Transparent Level Gauges.

Backed by over 160 years of precision glass expertise, John Moncrieff Ltd delivers Bi-Colour Steam Level Gauges that combine safety, visibility, and performance — built to meet the toughest operational and compliance standards in the steam industry.
