METAGLAS® Type 13.B3 — Sight Glass Flange to ANSI B16.5

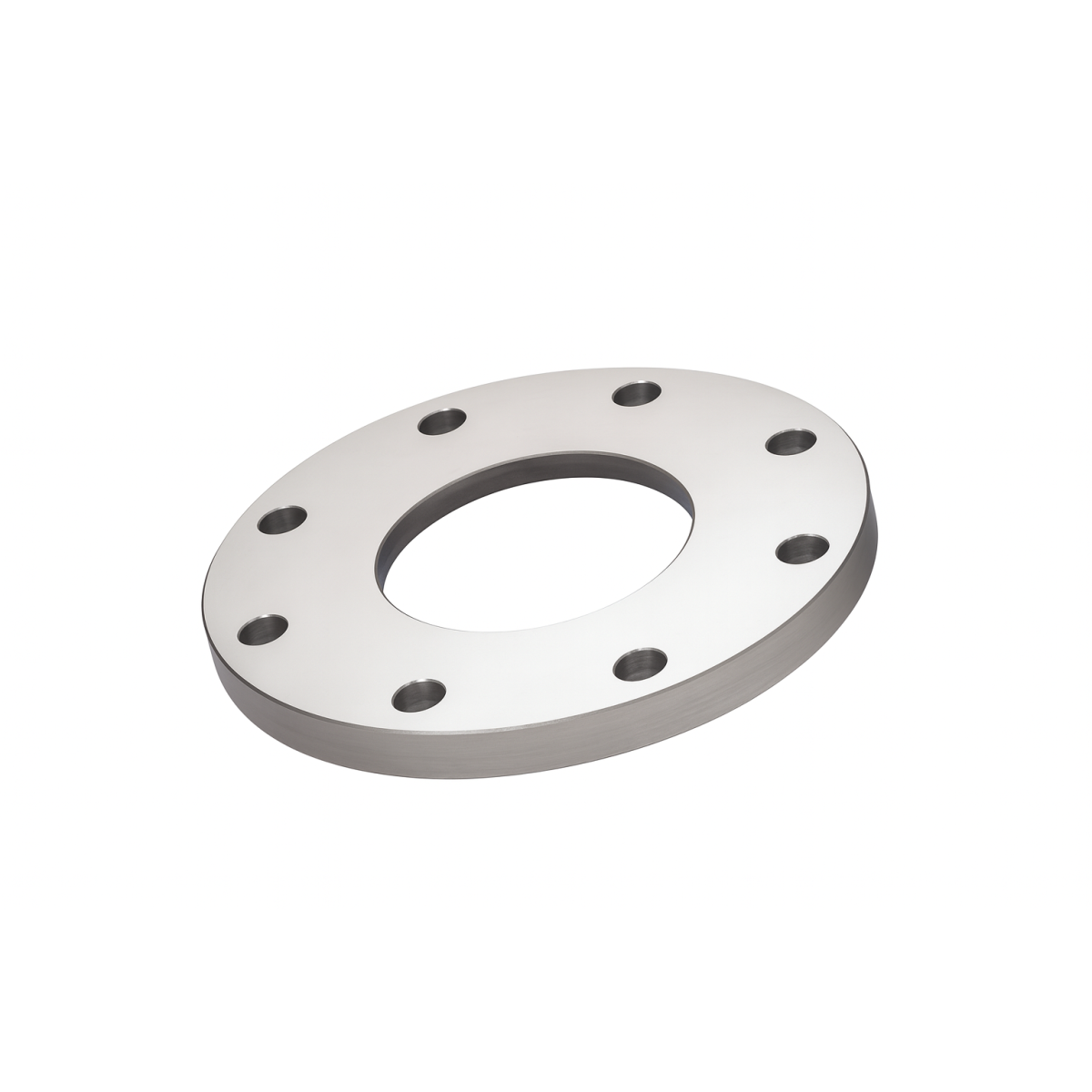

The METAGLAS® Type 13.B3 is a precision-engineered metal-fused sight glass flange
manufactured to ANSI B16.5 fitting dimensions. Designed for installation on base flanges
or weld-neck flanges with a flat sealing surface, it offers exceptional strength, optical clarity, and
sealing reliability for demanding process environments.
This model is intended exclusively for flat-face flanges without sealing ledge and requires a
complete gasket to ensure proper sealing performance. The metal-fused glass construction delivers
permanent mechanical pre-stress, resulting in outstanding pressure and thermal resistance.
Design & Construction
Standard: ANSI B16.5 — fitting dimensions for base and weld-neck flanges
Flange Interface: Flat sealing surface only, without sealing ledge
Sealing: Requires a full-face gasket (supplied per application spec)
Bonding Method: Glass fused into metal ring, forming a permanent, leak-tight unit
Performance: Excellent resistance to vibration, pressure cycling, and temperature gradients
Applications
Process vessels and reactors with ANSI B16.5 flange connections
Chemical and petrochemical process equipment
Power generation, steam, and utility systems
Observation ports and inspection covers in industrial plants
Key Advantages:
Complies fully with ANSI B16.5 dimensional standards
High mechanical and thermal endurance under process conditions
Reliable leak-tight sealing with complete gasket installation
John Moncrieff Ltd supplies METAGLAS® Type 13.B3 assemblies
engineered for safety, reliability, and compliance with ANSI and PED standards.
Ideal for both new installations and retrofit applications across the process industries.
