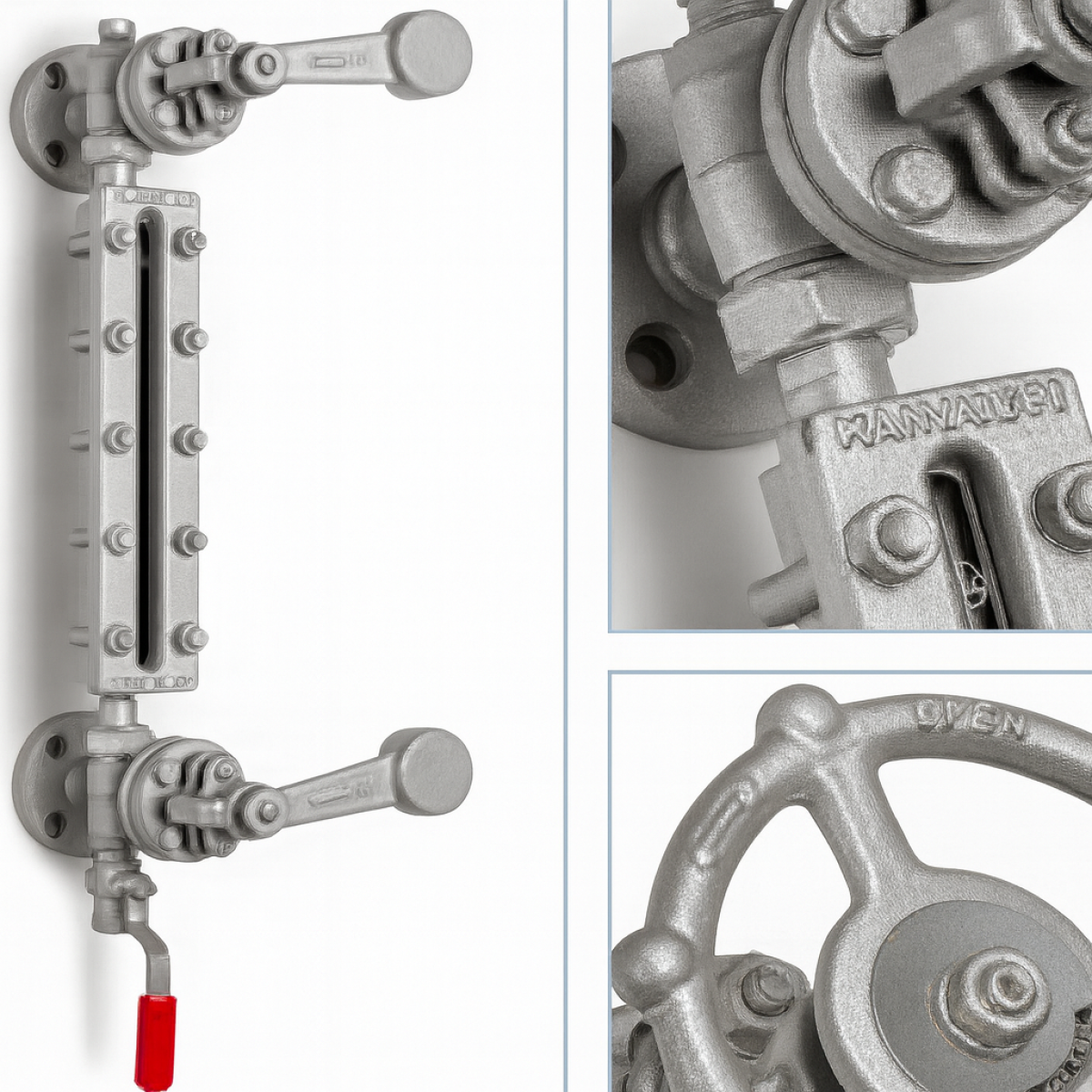

Steam Level Gauge - Reflex

Product Code: Steam Level Gauge - Reflex

Reflex Level Gauge — Clear, Reliable Indication for Industrial and Steam Applications

The Reflex Level Gauge from John Moncrieff Ltd provides a highly visible, direct reading of liquid levels in vessels, boilers, and process equipment. Operating on the proven principle of light absorption and reflection, it delivers a distinct black-and-silver contrast between gas and liquid phases — ensuring accurate and immediate level recognition even in challenging environments.

Available in pressure ranges from ANSI Class 150 to ANSI Class 1500, this gauge is particularly suited for low-pressure steam boilers, gas liquefaction plants, reactors, and storage vessels. Its rugged construction, high optical clarity, and dependable operation under cyclic conditions make it a mainstay across global process industries.

Operating Principle

In a Reflex Gauge, incident light is absorbed by the liquid column, creating a dark appearance, while it is reflected in the vapour space, producing a bright silver reflection. The resulting sharp contrast provides unambiguous level identification without auxiliary lighting.

Product Details

Pressure Range: Steam pressures up to 22 bar
Viewing: Direct visual observation through toughened reflex glass
Indication: Distinct black-and-silver contrast between phases
Performance: Reliable operation on cyclic duty
Safety Features: Top & bottom safety shut-off ball checks
Orientation: Left- or right-handed configurations available
Standards: ANSI Class 150 to ANSI Class 1500 service ratings

Typical Applications

Steam boilers and economisers
Gas liquefaction and storage systems
Process reactors
Industrial tanks and vessels
Power generation and chemical processing plants

Backed by more than 160 years of glass-engineering expertise, John Moncrieff Ltd supplies Reflex Level Gauges built for safety, accuracy, and longevity — delivering proven performance across the world’s most demanding steam and process installations.
