Quickmount Tank Gauge

Product Code: Quickmount Tank Gauge

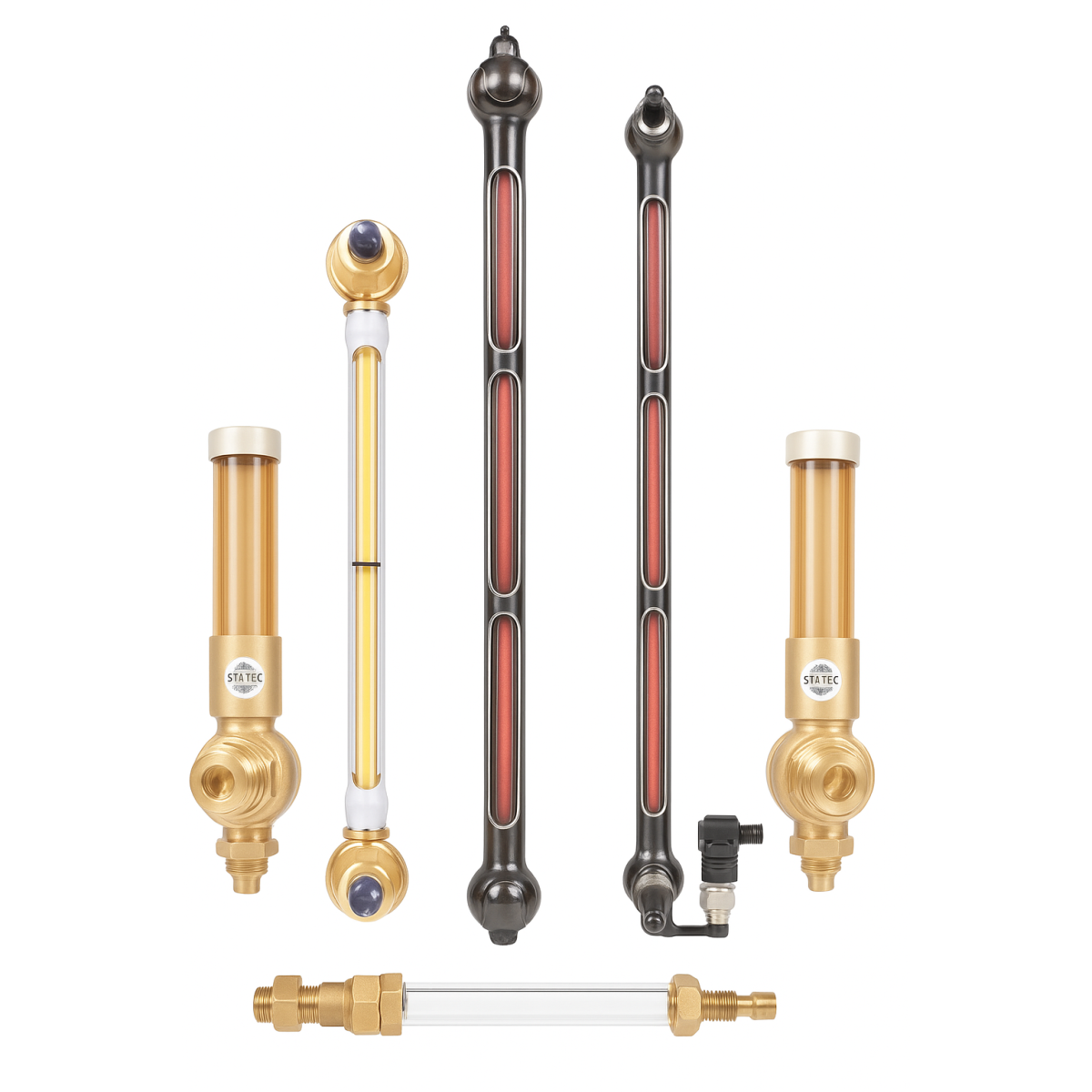

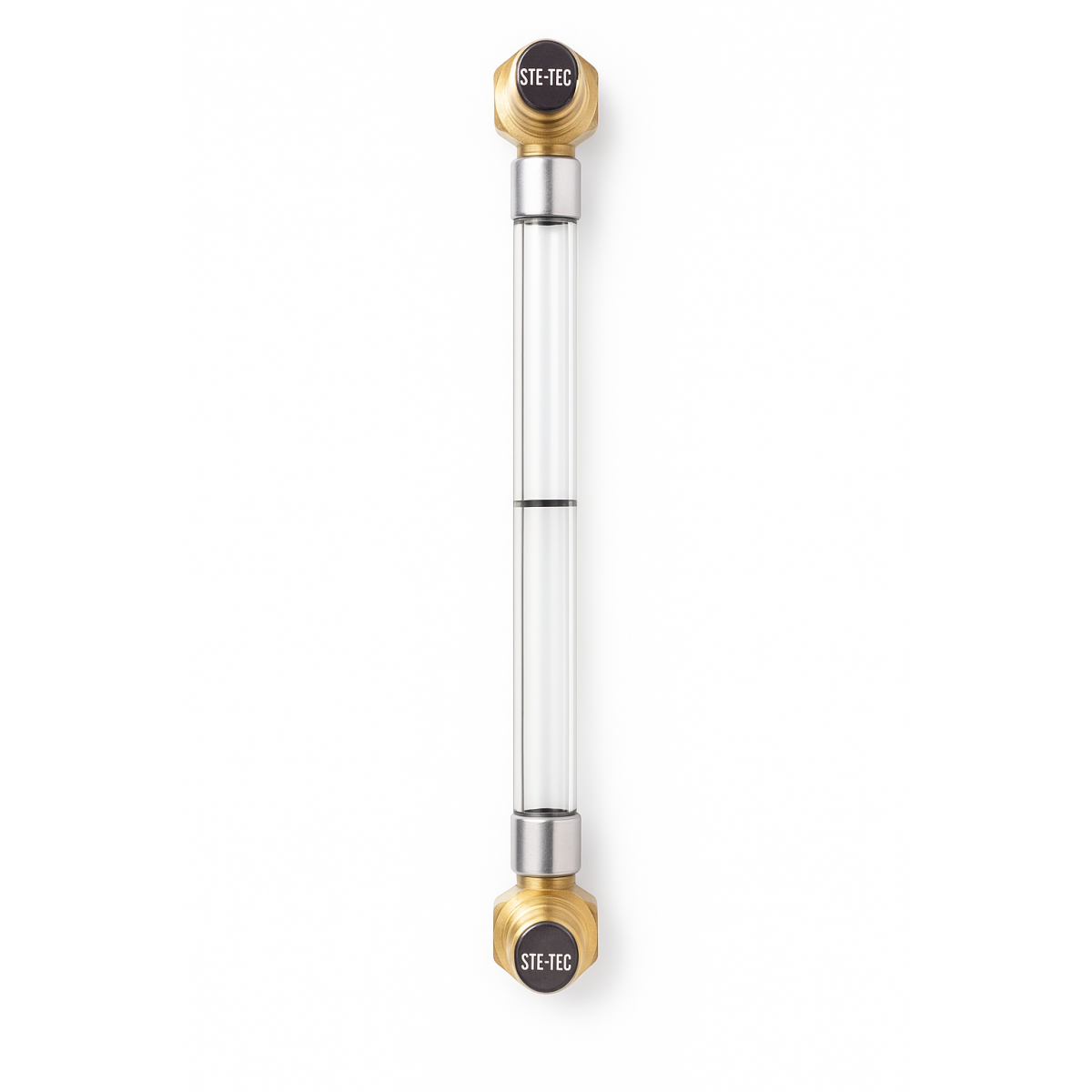

Quickmount Tank Level Gauge

The John Moncrieff Ltd Quickmount Tank Level Gauge is our most popular unit — engineered for general industrial use where reliability, serviceability, and efficiency are critical. Its unique isolating valve and collar design allows maintenance of the gauge column without tools and without draining the tank, minimising downtime and maintenance costs.

Designed to handle a wide range of pressures and temperatures, the gauge can be supplied with automatic safety shut-off valves and a drain valve. It’s fitted with elastomer seals selected to match your service media for optimal compatibility.

Example Applications

Diesel (on-land applications)
Fuel oil (on-land applications)
Lubrication oil (on-land applications)
Water and coolant systems
Chemical storage and process tanks
Lubricant oil systems
General liquid storage vessels

Key Features

Delivery: Typically 4–5 weeks or less.
Pressure Rating: Maximum working pressure 22 bar.
Temperature Rating: Maximum working temperature 150 °C.
Connections: ½″, ⅝″ or ¾″ BSP fittings; flanges available in DN or ANSI standards.
Circuit Options: Open or closed circuit configurations.
Material Options: Brass, stainless steel, or polypropylene plastic for varied service conditions.
Lengths: Manufactured up to 5 metres +.
Safety & Control: Optional safety ball shut-off valves, drain/vent valves, and electronic read-out modules.
Tubing Options: Clear acrylic tube available for low-pressure service.
Protection: Robust tubular guard for mechanical protection.
Graduation: Graduated gauges available for precise volume measurement, either marked on the guard tube or engraved on a scale plate.

Quality & Certification

ISO 9001 Certified: Manufactured and inspected under BSI-audited quality standards.
Traceability: Full material certification and test documentation available on request.
Support: Technical assistance available for design, sizing, and custom builds.

The Quickmount Tank Level Gauge delivers the perfect balance of precision, serviceability, and durability — a trusted choice for industrial fluid level monitoring worldwide.
