Process Level Gauge - Transparent
- Product Code: Process Level Gauge - Transparent
Transparent Level Gauge is perfectly suited for viscous, interface and coloured liquids.
With two pieces of glass on opposite sides of the chamber, light passes through the transparent level gauge allowing the liquid position to be detected, whilst also monitoring the liquid’s characteristics e.g. viscosity.
PRODUCT DETAILS
For gauges being used in corrosive or steam environments, shields are available to protect the glass:
- Steam pressures above 22 Bar and up to 120 Bar
- Mica glass protection options available
- Direct viewing of liquid through glass
- Illuminator options for viewing in dark areas
- Right or left hand operation options
- Ball checks are fitted to both top and bottom
- Pressures up to ANSI 1500 (250 Bar)
- Temperature range -196°C to +400°C
Related Products

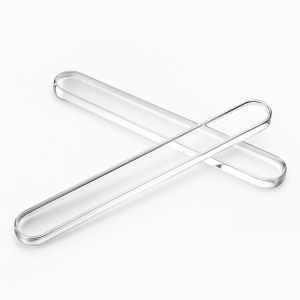

Gauge Glass - Transparent
SKU: Gauge Glass - Transparent
John Moncrieff — Maxos Transparent Gauge Glass At John Moncrieff Ltd, we supply Maxos Transparent Gauge Glass, engineered for clarity, durability, and high-pressure performance. ...

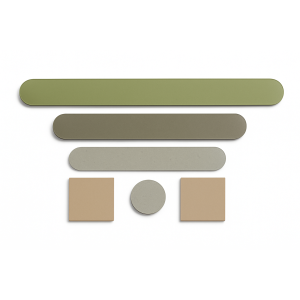

Mica Sheild
SKU: Mica Shields
John Moncrieff — Mica Shields for Gauge Glass Protection When working with steam, hot alkaline, or acidic solutions, protecting your gauge glass is critical for maintaining system saf...
Packing Sleeves
SKU: Packing Sleeves
Boiler packing sleeves are essential components in industrial boilers, designed to provide efficient sealing and prevent leakage around the boiler's tubes. Our Packing Sleeves are made from 99.5...

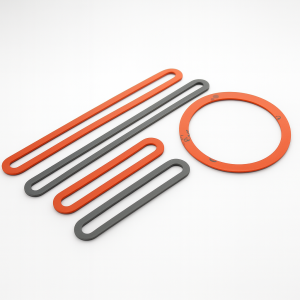

Gaskets
