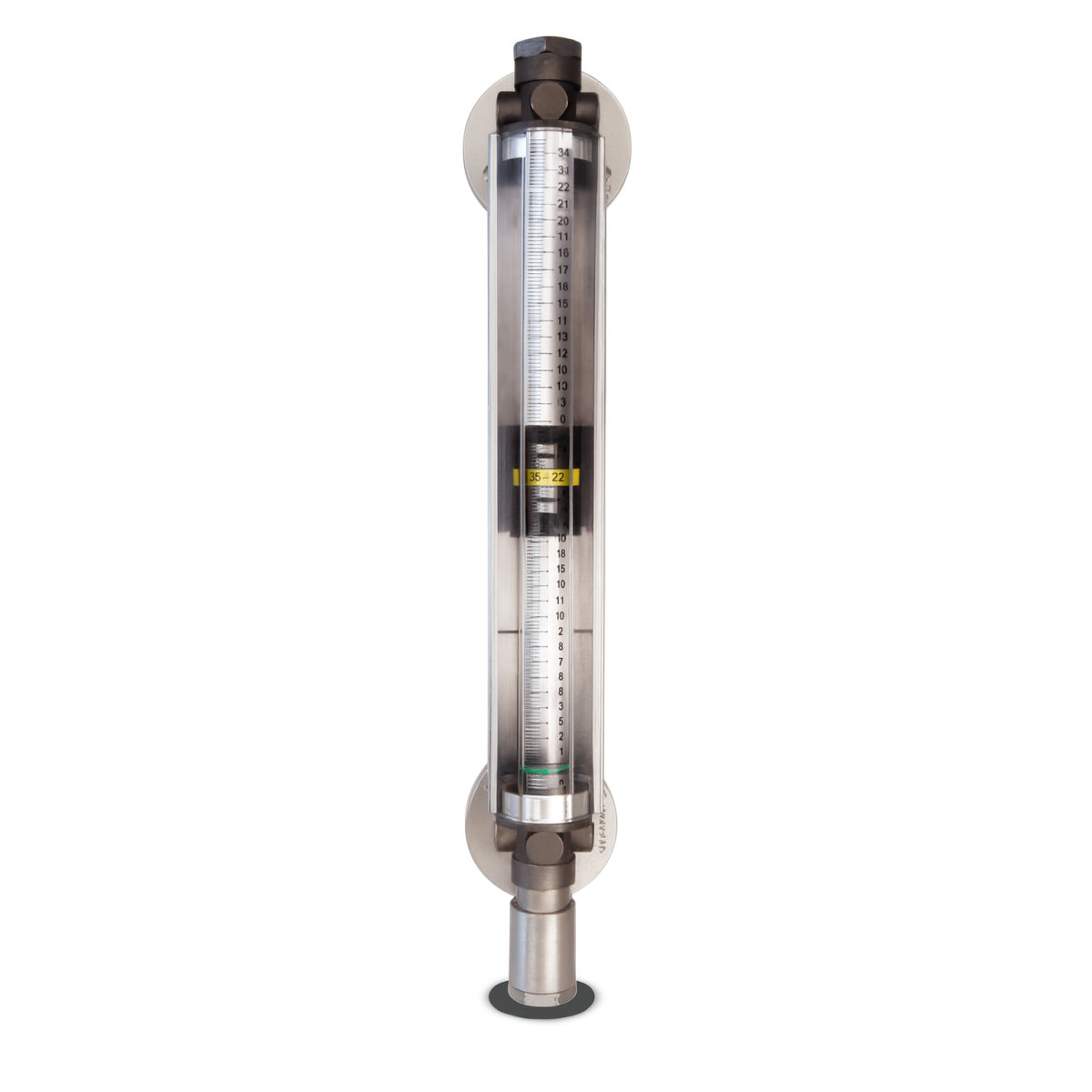

Seemag Gauge — Magnetic Level Indicator for Marine & Industrial Applications

The Seemag Tank Content Indicator is a high-quality yet cost-effective magnetic level gauge designed for marine and offshore environments. Its advanced magnetic coupling design delivers accurate, step-less readings with 360° visibility, making it a trusted solution where precision, reliability, and safety are paramount.

Unlike conventional magnetic gauges, the Seemag system incorporates a movable carriage with a marker strip that mirrors the motion of a float inside the sealed stainless-steel tube via magnetic coupling. The marker strip can be adjusted to match the specific gravity of the liquid, ensuring reliable measurement accuracy across varied applications.

Example Applications

• Diesel
• Fuel oil
• Heavy fuel oil (heating may be required)
• Lubrication oil
• Water
• Coolant
• Chemicals

Approvals & Standards

• Det Norske Veritas (DNVGL)
• Lloyd’s Register of Shipping (LR)
• American Bureau of Shipping (ABS)
• RINA
• Meets the requirements of SOLAS (Safety of Life at Sea)

Key Features

• Accurate Step-less Reading: Smooth, continuous measurement eliminates “jump” effects common in conventional magnetic gauges.
• 360° Visibility: Clear visual indication from all directions — ideal for ship engine rooms and industrial tanks.
• Custom Marker Calibration: Adjustable to specific gravity (0.7–1.3) for precise performance.
• Operating Temperature: Up to 180 °C.
• Centre Distances: 450 mm – 5000 mm.
• Connections: Wide range of screwed and flanged configurations to suit installation requirements.
• Heating Options: Electrical trace, steam, or thermal oil heating for high-viscosity fluids.
• Digital Read-Out: Optional remote level indication for bridge, control room, or process integration.

Performance Summary

• Operating Temperature: Up to 180 °C
• Centre Distance Range: 450 mm – 5000 mm
• Specific Gravity Range: 0.7 – 1.3
• Read-Out Options: Local indicator / digital remote
• Heating Options: Electrical, steam, or thermal oil

The Seemag Gauge merges precision magnetic technology with proven marine engineering to deliver a rugged, maintenance-friendly, and class-approved solution — trusted globally for shipboard tank level monitoring.

Technical Specifications:
