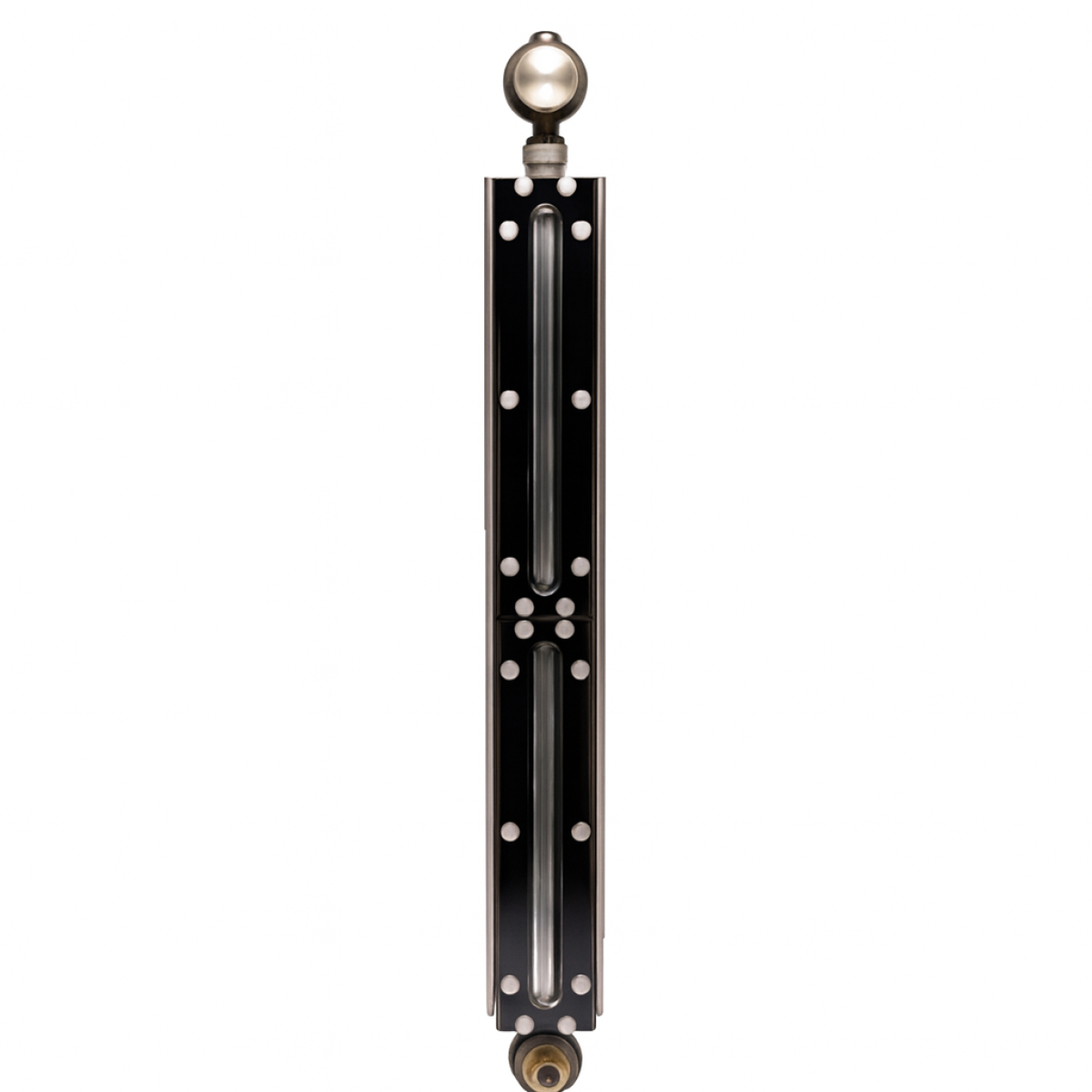

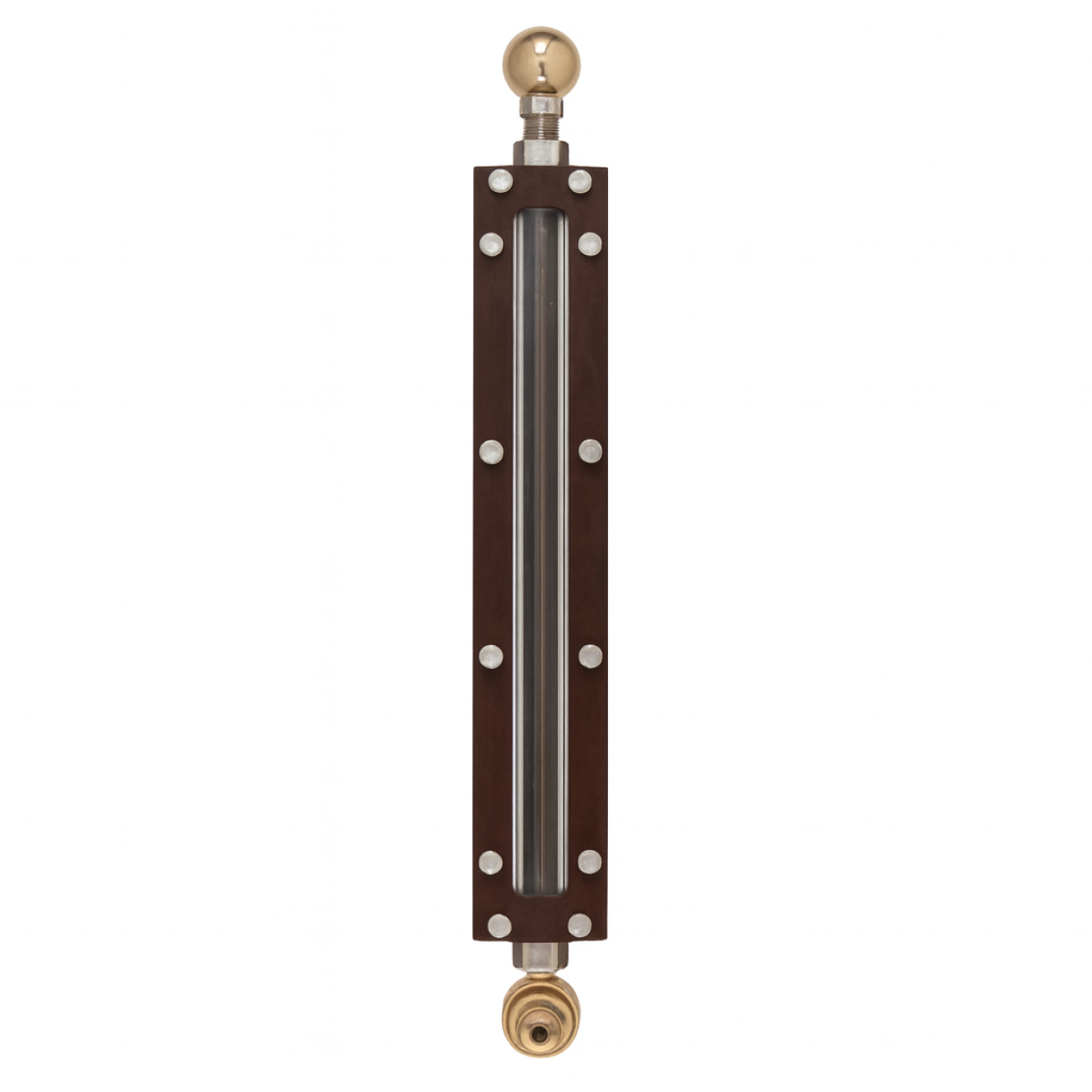

Seeflex Gauge — Reflex Glass for Marine & Offshore Flammable Service

The Seeflex Gauge is a reflex glass level gauge engineered for tanks containing flammable liquids in marine and offshore environments. It meets the requirements of SOLAS (Safety of Life at Sea) and is the go-to choice on cargo ships and work boats where clarity, safety, and compliance are non-negotiable.

Example Applications

• Diesel
• Fuel oil
• Aviation fuel
• Lubrication oil
• Water
• Coolant

Approvals & Standards

• Det Norske Veritas (DNVGL)
• Lloyd’s Register of Shipping (LR)
• American Bureau of Shipping (ABS)
• RINA
• Meets the requirements of SOLAS (Safety of Life at Sea)

Key Features

• Max Operating Pressure: 2.67 bar
• Max Operating Temperature: 80 °C
• Front Bezel: Rust-protected mild steel or SS316
• Back Channel: SS316
• Bodies: Brass or stainless steel
• Connections: Various options available to suit yard/spec requirements
• Reflex Glass Technology: High-contrast liquid/steam interface for fast, unambiguous reading

Quality & Documentation

• Manufactured under ISO 9001 with full material traceability
• Certification packs (CoC/inspection data) available on request
• Technical support for connection standards and vessel integration

Bottom line: Seeflex pairs reflex-glass readability with marine-grade construction and the approvals you need to pass audit, first time.

Technical Specifications:
